| High-Performance Carbon Fiber Rolls | |||||
| Industry | Application | Features | Surface Material | ||
| Printing, film, lithium battery slitting, high-speed paper, non-woven production | Film: contact rollers, touch rollers | ・Lightweight (approx. 1/5 the weight of steel), reduces equipment load ・High rigidity, minimal deformation, ideal for precision processes ・Low thermal expansion, suitable for high-temp or constant-temp environments ・Excellent corrosion resistance for humid or chemical environments | Surface options: Plating， High-strength composite (Shore D), arious rubber coatings Customizable on request | ||
| Paper industry: winding rollers, oscillating rollers | |||||
| Printing: guide rollers | |||||
| Copper foil slitting: guide rollers | |||||
| *Size:Customized upon request | |||||
| *Ideal for precision lamination, coating, winding of optical films with low deflection, uniform pressure, and no wrinkles or bubbles. | |||||

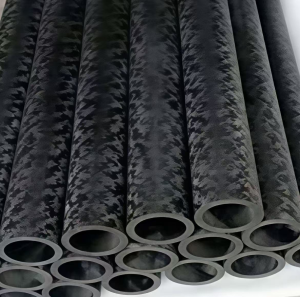

| Carbon Fiber Tube For Export |  | ||||
| Industry | Features | Size | |||
| Film: contact rollers, touch rollers | •High stiffness: -Young’s Modulus Steel ~210GPa → Carbon Fiber 230–600GPa •Lightweight: -Up to 80% lighter than steel (Steel: 7.8kg/dm³ → CFRP: 1.7kg/dm³) • Low thermal expansion: -Steel: 12×10⁻⁶/°C → CFRP: 0.2×10⁻⁶/°C •Adjustable stiffness: -Fiber type and angle can be tailored •Excellent environmental resistance: -Withstands heat, burn, moisture, corrosion, radiation, and extreme environments | Customized upon request | |||
| Paper industry: winding rollers, oscillating rollers | |||||
| Printing: guide rollers | |||||
| Copper foil slitting: guide rollers | |||||
| *Custom-built products. Please contact us for optimal design and production line solutions. | |||||
| High-Performance Carbon Fiber Rolls | |||||
| Industry | Application | Features | Surface Material | ||
| Printing, film, lithium battery slitting, high-speed paper, non-woven production | Film: contact rollers, touch rollers | ・Lightweight (approx. 1/5 the weight of steel), reduces equipment load ・High rigidity, minimal deformation, ideal for precision processes ・Low thermal expansion, suitable for high-temp or constant-temp environments ・Excellent corrosion resistance for humid or chemical environments | Surface options: Plating， High-strength composite (Shore D), arious rubber coatings Customizable on request | ||
| Paper industry: winding rollers, oscillating rollers | |||||
| Printing: guide rollers | |||||
| Copper foil slitting: guide rollers | |||||
| *Size:Customized upon request | |||||
| *Ideal for precision lamination, coating, winding of optical films with low deflection, uniform pressure, and no wrinkles or bubbles. | |||||
| Carbon Fiber Tube For Export | | ||||
| Industry | Features | Size | |||
| Film: contact rollers, touch rollers | •High stiffness: -Young’s Modulus Steel ~210GPa → Carbon Fiber 230–600GPa •Lightweight: -Up to 80% lighter than steel (Steel: 7.8kg/dm³ → CFRP: 1.7kg/dm³) • Low thermal expansion: -Steel: 12×10⁻⁶/°C → CFRP: 0.2×10⁻⁶/°C •Adjustable stiffness: -Fiber type and angle can be tailored •Excellent environmental resistance: -Withstands heat, burn, moisture, corrosion, radiation, and extreme environments | Customized upon request | |||
| Paper industry: winding rollers, oscillating rollers | |||||
| Printing: guide rollers | |||||
| Copper foil slitting: guide rollers | |||||
| *Custom-built products. Please contact us for optimal design and production line solutions. | |||||
